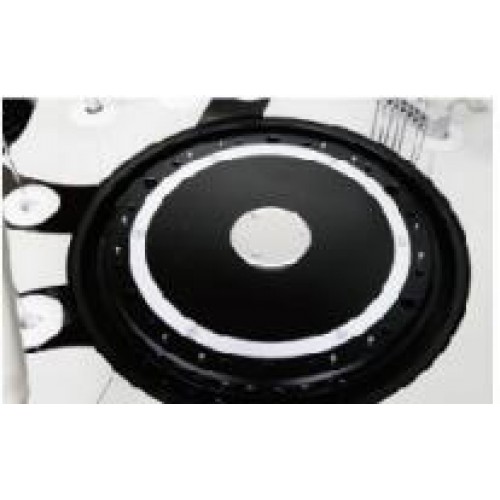

Reaction tray

37℃±0.1℃, with online softare monitor the temperature

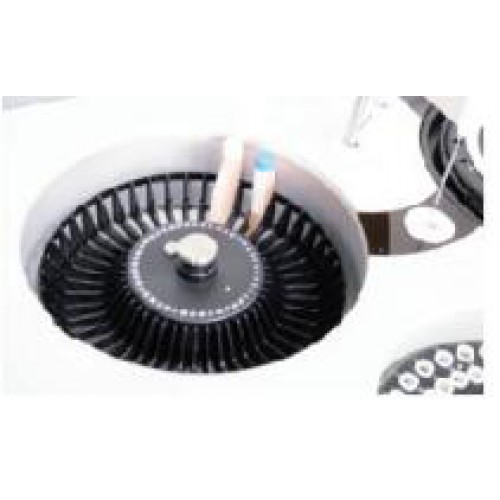

Reagent tray

Continuous 2℃~8℃ cooling within 24 hours

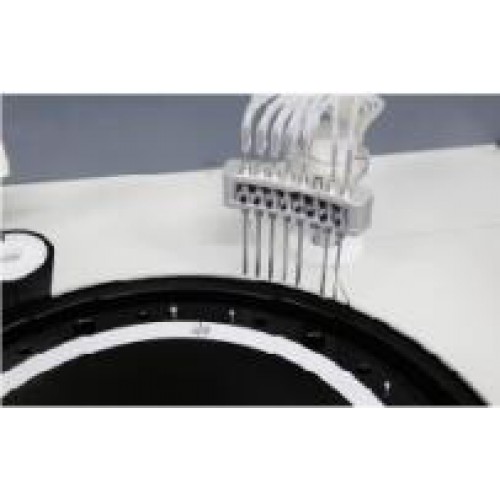

Stirring needle

Teflon coating to avoid cross contamination

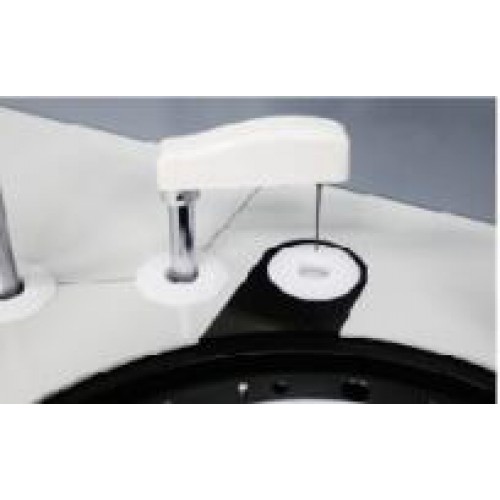

Sample needle

Liquid level sensor function, with anti-collision function, reagent volume real-time detection

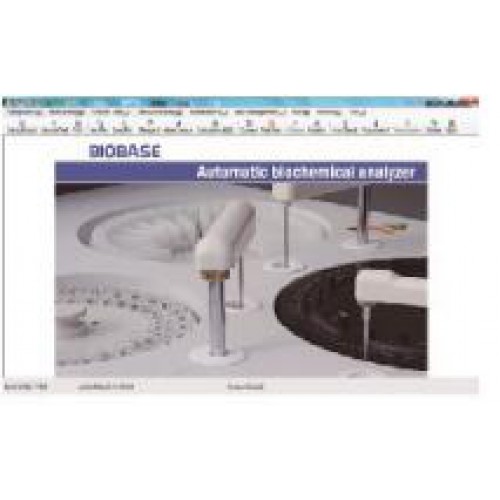

Software

User-friendly software

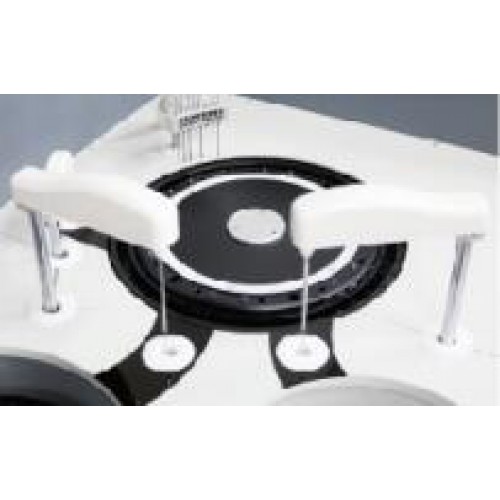

Cleaning needle

Independent cleaning system






Name Unit Quantity
Sample cup One 1
Cuvettes Pack(120 units) 1 pack
Reagent Probe One 1
Sample Probe One 1
Mixer One 1
Fuse wire One 1
Halogen lamp One 1
Overall Performance Model  BK-400(CRYSTAL)
Type  Discrete, fully automatic
Throughput  300T/H
Analysis Method    End-point, Fixed-time,Rate
Certification  CE, FDA, ISO9001, ISO14001, ISO13485
  Sample unit Sample Settings  60 sample positions, including calibration, quality control and emergency
Sample Volume  2ul ~70ul (0.1ul stepping)
Sample Probe  Teflon coating probe, with liquid level sensor, with anti-collision function
Probe cleaning  Automatic washing both interior and exterior
Analysis Items  Analyzing maximally 45 items at the same time
  Reagent unit Reagent Position  45 low-temperature refrigerated reagent position
Reagent Volume  20ul ~350ul (1ul stepping), supporting reagent from different brand
Temperature Control  Continuous 2℃~8℃ cooling within 24 hours
Reagent Probe  Teflon coating probe, with liquid level sensor,withanti-collision function.
Probe cleaning  Automatic washing both interior and exterior
Reaction unit Temperature Control  37℃±0.1℃, with online software monitor the temperature
Cuvettes  120 reusable reaction cuvettes (optical path length 6mm)
Mixer  After injecting reagent and sample, blending immediately
Washing  Automatic water cleaning and drying system
System Adjustment  System can record the blank value and get more accurate result by deducting   blank base value of each cuvette
Optical System Light Source  12V/30W halogen-tungsten lamp, 2000 hours
Receiver  8 precision photo receivers
Wavelength Range  340, 405, 450, 510, 546, 578, 630, 700mm
Linear Range   0.000~2.500Abs
Calibration and QC Calibration  One-point, two-point, multi-point, factor
Quality Control  Inserting quality control at random, with reaction curve can check each test items clearly
  Software Emergency Function  Emergency sample can be placed in the sample tray at any time
Software  Windows 7 /8/10 or above, LIS system available
Data Processing  Having reaction curve detection and data display function in the whole process
Others Power Supply  110/220V±10%, 50/60Hz
External Size(W*D*H)  1020mm*830mm*1200mm
Package Size(W*D*H)  1168*908*1288mm
Net/Gross Weight  130kg/185kg

①. 60 Sample positions.

②. 45 Reagent positions.

③. 120 Reaction cuvettes.

④. 300 Tests / Hour.

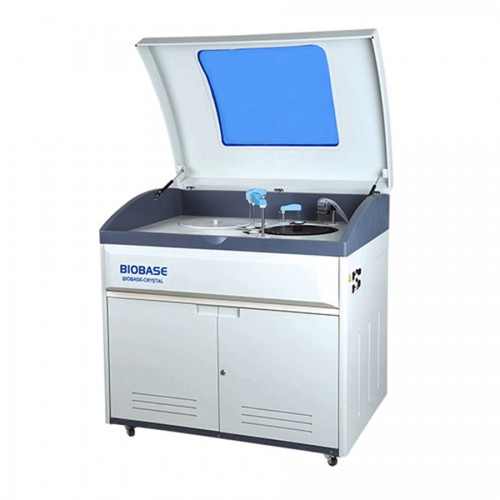

BK-400(CRYSTAL) Auto Chemistry Analyzer

  • ผู้ผลิต: Biobase
  • รหัสสินค้า: BK-400
