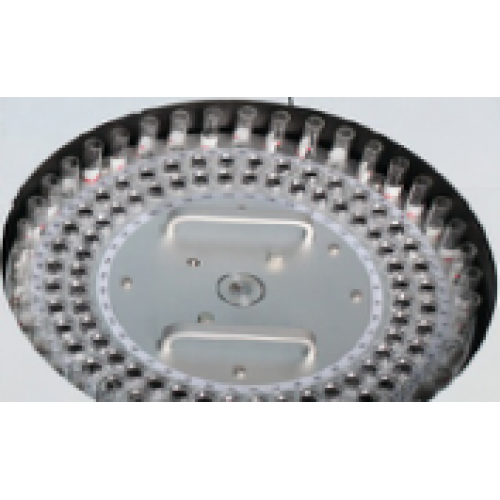

Sample/Reagent tray

·120 sample position
·90 reagent position
·Reagent refrigerated function

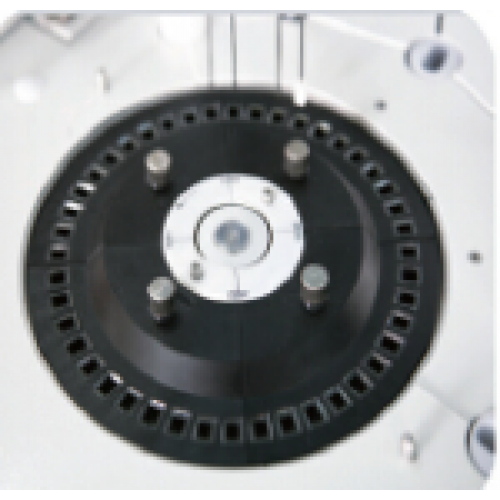

Reaction tray

·90  reusable cuvettes
·Automatic blank testing for cuvettes
·Colorimetry system of the pattern of light splitting behind cuvettes
·Dismountable, easily replacement
·Reaction temperature 37℃,constant temperature function

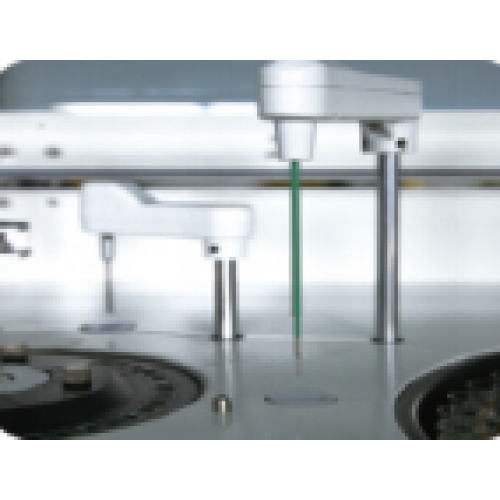

Sample/Reagent Probe

·Automatic liquid level detecting
·Collision protection function
·Probe internal/external washing
·Probe deepth automatic adjustment

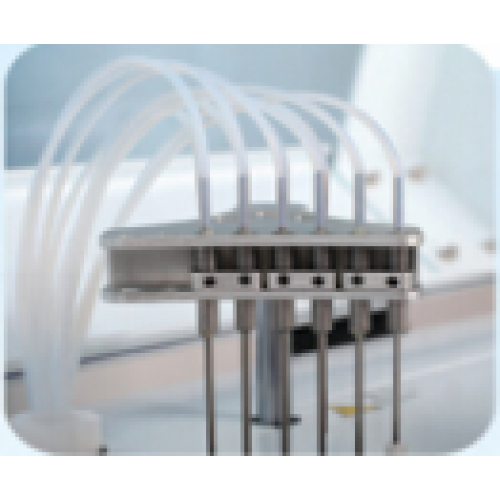

Auto cleaning system

·Automatically 6-step wash
·2 times repeat wash
·Hi-tech washing station to ensure accurate results

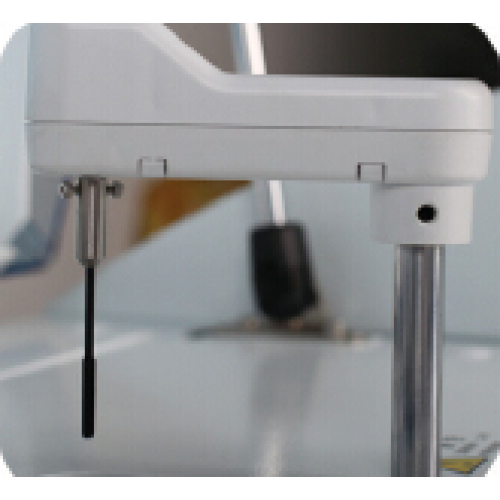

Auto mixer, independently

·Automatically mix reagent and sample in cuvettes
·Ensure full reaction
·Automated wash itself
·Avoid cross-contamination

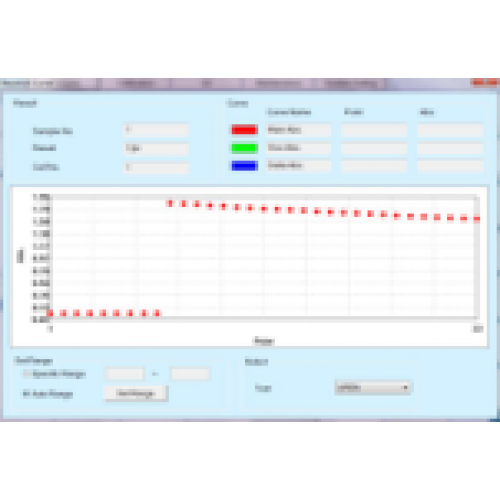

Perfect standard diagram

·Automatic show reaction curve
·QC result diagram recorder,print available

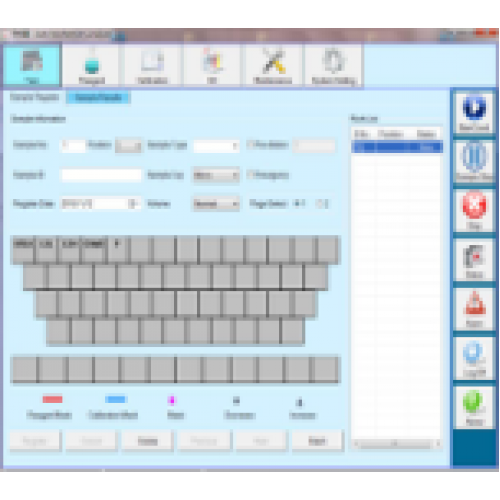

Intelligent software

·Automatic washing cuvette
when start test&finish test
·Automatic detect sample& reagent volume
·Reaction temperature detecting when startup
·Alarm: automatic alarm of no reagent,no sample,wrong run,out of linearity range etc
·Automatic re-test sample in next order if no reagent

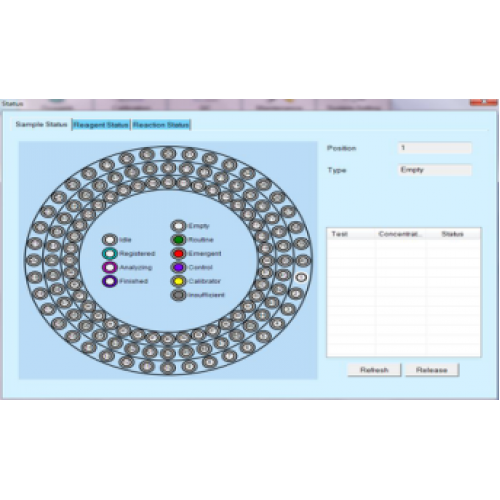

Real-time and Dynamic display running status

·Real-time show the running status
·Real-time show the status of reagent tray,sample tray,cuvettes
·Real-time update the reagent residual volume

Overall Performance Model BK-480(RUBY)
Type Vertical,Discrete,Fully automatic
Throughput 400T/H
Analysis Method End-point,kinetic,Two-point
Certification CE, FDA, ISO9001, ISO14001, ISO13485
Sample & Reagent Unit  Sample Positions 120 sample positions
Reagent Positions 90 pcs (With refrigerated function)
Sample Volume 2-30ul,0.1μl step
Reagent Volume 20-300μl,1μl step
Sample& Reagent Probe  Automatic liquid level detecting Collision protection function Probe internal/external washing Probe deepth automatic adjustmen
Probe cleaning Automatic washing both interior and exterior
Reagent tray cooling Continuous 2℃~8℃ cooling within 24 hours
Reaction Unit Reaction Time 10 minutes
Temperature Control 37±0.1℃,automatic heating
Cuvettes 90 reusable reaction cuvettes
Washing After finishtesting, washing probe wash cuvettes automatically
Optical System Light Source Halogen-tungsten lamp
Wavelength 340-700nm,8 wavelengths,(4 positions are optional)
Absorbance range  0-4.00Abs
Linear Range 0.0001Abs
Calibration and QC Calibration Linear/nonlinear,one point,multi-point(Max 8 points)
Quality Control QC plot automatically depict the function condition,show the QC results
Software Intelligent software Automatic washing cuvette when start test&finish test,Automatic detect sample& reagent volume,Reaction temperature detecting when startup
Alarm Automatic alarm of no reagent,no sample,wrong run,out of linearity range etc, Automatic re-test sample in next order after no reagent
Software Windows 7,Windows 8 or above, windows XP
Others Power Supply AC110/220V,±10%, 50/60Hz,1000VA
Package Size(W*D*H) 1220*1340*890mm
Gross Weight 200kg

①. 120 Sample positions

②. 90  Reagent positions

③. 90 Reaction cuvettes

④. 400 Tests /Hour

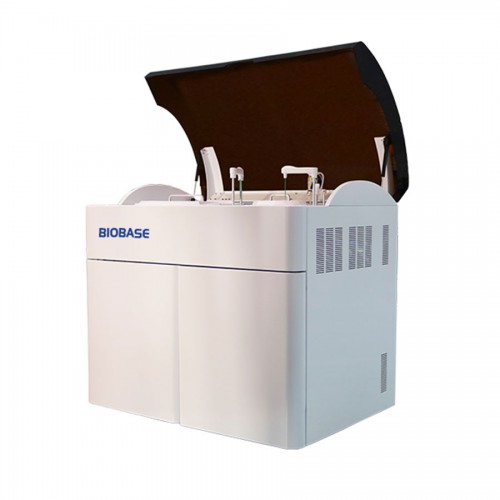

BK-480(RUBY) Auto Chemistry Analyzer

  • ผู้ผลิต: Biobase
  • รหัสสินค้า: BK-480
