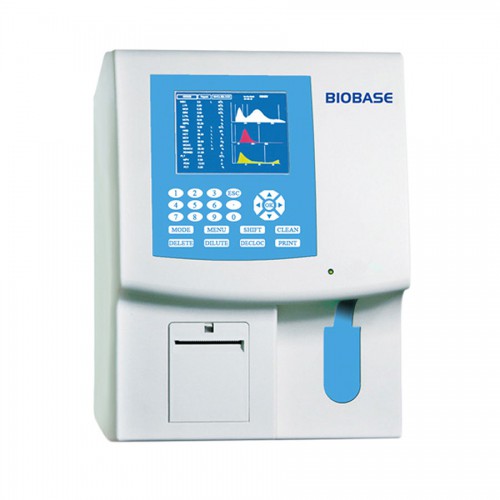

  • BK6100 Auto 3 Part Hematology Analyzer

1. Easy to operate.
2. Automatic standby function.
3. Clog prevention and maintenance function.
4. Automatic self-checking and warning function.
5. Safe reagent without any harm to environment.
6. Both whole blood and prediluted blood test modes are available.
7. Carry-over protection by automatic probe interior and exterior washing.

Model
BK-6100
Automatic Fully automatic
Throughput 60 tests/hr
AssayItems 22 parameters, 3 parts differential of WBC
SampleVolume 13ul(whole blood),20ul(prediluted blood)
MeasuringPrinciple Electro-impedance, photometric
Model
BK-6100
Automatic Fully automatic
Throughput 60 tests/hr
AssayItems 22 parameters, 3 parts differential of WBC
SampleVolume 13ul(whole blood),20ul(prediluted blood)
MeasuringPrinciple Electro-impedance, photometric analysis
Testing Items WBC  LY  LY%  MO  MO%  GR  GR%                 RBC  HGB  HCT  MCV  RDW-SD  RDW-CV  MCH MCHC  PLT  MPV  PCT  PDW WBC histograms  RBC histograms  PLT histograms
LinearityRange WBC: 0.0-99.9(×10^9/L)   RBC:0.0-99.9(×10^12/L) HGB: 0.0-300(g/L)         PLT: 0.0-99.9(×10^9/L)
Accuracy (CV%) WBC≤2.0%         RBC≤1.5%        PCT≤3.0% PLT≤5.0%          HGB≤1.5%        MPV≤3.0% HCT≤2.0%          MCV≤1.0%       PDW≤3.0% MCH≤2.0%         MCHC≤2.0%
Display LCD
Storage 200,000 results including histograms
Output One RS232 ,one PS2 and two USB. Available for LIS
Printer Built-in thermal printer, USB to external printer(Optional)
Data input Keypad ( mouse and keypad available)
QC Automatically calculates X, SD, CV% and saves date
Language English and Spanish. Other language on request
Power supply 110/220V±10% , 60/50Hz
Package Size 660*480*640mm
GrossWeight 38kg
Previous: Semi Auto Coagulation Analyzer analysis
Testing Items WBC  LY  LY%  MO  MO%  GR  GR%                 RBC  HGB  HCT  MCV  RDW-SD  RDW-CV  MCH MCHC  PLT  MPV  PCT  PDW WBC histograms  RBC histograms  PLT histograms
LinearityRange WBC: 0.0-99.9(×10^9/L)   RBC:0.0-99.9(×10^12/L) HGB: 0.0-300(g/L)         PLT: 0.0-99.9(×10^9/L)
Accuracy (CV%) WBC≤2.0%         RBC≤1.5%        PCT≤3.0% PLT≤5.0%          HGB≤1.5%        MPV≤3.0% HCT≤2.0%          MCV≤1.0%       PDW≤3.0% MCH≤2.0%         MCHC≤2.0%
Display LCD
Storage 200,000 results including histograms
Output One RS232 ,one PS2 and two USB. Available for LIS
Printer Built-in thermal printer, USB to external printer(Optional)
Data input Keypad ( mouse and keypad available)
QC Automatically calculates X, SD, CV% and saves date
Language English and Spanish. Other language on request
Power supply 110/220V±10% , 60/50Hz
Package Size 660*480*640mm
GrossWeight 38kg

①. 3 part diff of WBC.

②. 22 parameters.

③. 60 tests per hour.

BK6100 Auto 3 Part Hematology Analyzer

  • ผู้ผลิต: Biobase
  • รหัสสินค้า: BK6100
