Parameters: PT, APTT, TT, FIB, etc.
Principle: Clotting, optical method
Precise electronic pipette
Languages: English, French, Spanish, Portuguese, etc.
Automatic start reagent addition
Thermal Printer, auto & manual print
Support LIS

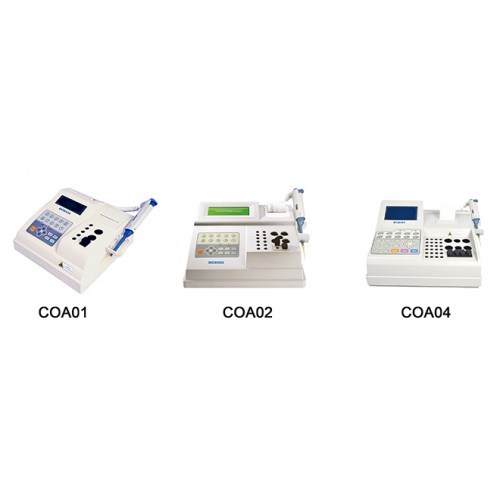

Model COA01 COA02 COA04
Testing channel 1 2 4
Display 4.3 inch screen 5 inch screen
Cuvette incubation positions 5 12 24
Reagent incubation positions 2 5 6
Wavelength LED 470nm
Sample type Plasma
Memory 10000 results storage
Sample volume 20-40μl
Electronic Pipette 20-40μl
Available dimensions Seconds, ratio, %, g/L
Incubation Temperature 37.0±1.0℃
Relative humidity ≤85%
Precision PT, APTT, FIB≤5%; TT≤8%(Normal sample)
Deviation between channels ≤5%
Power supply AC100-240V, 50/60Hz
Net weight 2.1kg 4.5kg 5.2kg
Dimension 290*260*135mm 345*325*145mm 375*335*175mm
Package size 360*360*260mm 440*420*350mm 440*420*340mm
Gross weight 6.5kg 7kg 7.5kg

Reagent parameters:

  Sample volume Reagent 1 Reagent 2 Incubating time CV%
PT 20μl 40μl ---------------- 120s ≤5%
APTT 20μl 20μl 20μl 180s ≤5%
TT 30μl 30μl ----------------- 120s ≤8%
FIB 40μl 20μl ----------------- 180s ≤5%

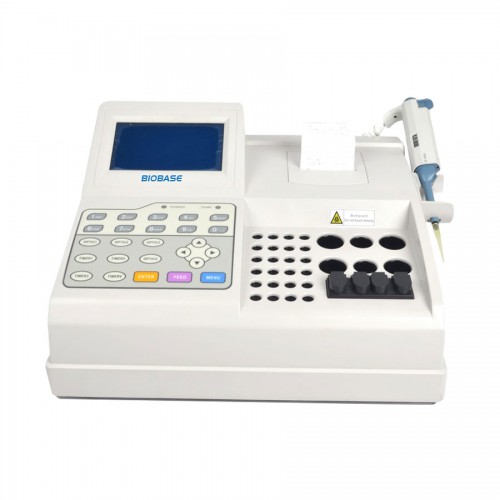

BIOBASE COA series Semi Auto Coagulation Analyzer is easy-to-use equipped with precise pipette.  Small volume of sample and reagent is needed for tests to save cost, for sure it is designed to meet the requirement of small lab or clinics.

Semi Auto Coagulation Analyzer

  • รหัสสินค้า: COA
