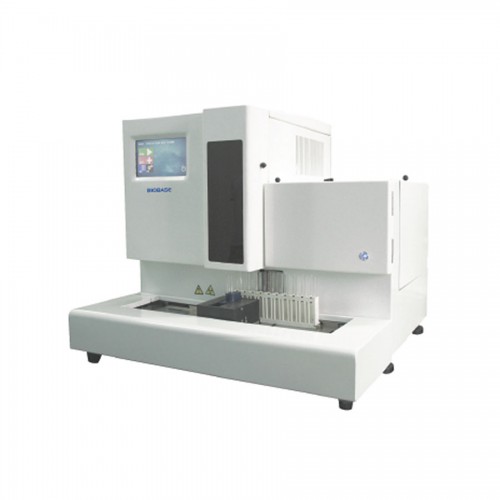

  • Auto Urine Analyzer UA-240

Test items:
Urobilinogen(UBG), Bilirubin(BIL), Ketone body(KET), Occult blood(BLD), Protein(PRO), Nitrite(NIT), Leukocyte(LEU), Glucose(GLU), Specific gravity(SG), Power of hydrogen(PH), Vitamin C(VC), Micro albumin(MAL), Creatinine(CRF), Calcium ion(CAL).

Features:
1. Fully automatic: Sample presentation, sample injection, sample drop, analysis and report output automatically.
2. High precision sample giving system: Ensure the accuracy and reduce pollution.
3. Each module adapts 32 bit ARM processor, and is connected by CAN(Controller Area Network). Fast and accurate.
4. Particular IC card control system: Reduce batch difference.
5. Particular system upgrade function: Convenient TF card upgrade and maintenance function.
6. Can be connected to urine tangible composition analyzer. Comprehensive report of urine dry chemical test results,organic ingredients miscroscopy results & physical and chemical indicators.

Model UA-240
Assay Method Albedometry
Throughput 240 tests/hr (15 seconds/test)
Test Tube Racks Volume  5 test tube racks(50 samples)
Sample Volume Not lower than the marked scale line on the test tube rack
Inhalation Sample Volume <1.0ml
Monochromatic Wavelength 525nm, 610nm, 660nm
Data Storage 20000 results
Output Standard RS-232 serial interface
Language English. Other languages on request.
Printer Built-in thermal printer
Working Environment 15~35℃, Optimum Temperature: 20~25℃, Relative Humidity:≤75%.
Power Supply AC 220V, 50Hz
Power 300VA
Fuse Specifications 250V 2A
Package Size(W*D*H) 734×524×885mm
Dimensions(W*D*H) 660×625×581mm
Net Weight 65kg
Gross Weight 100kg

Urine Strip

①. Fully automatic.

②. High precision sample giving system.

③. Each module adapts 32 bit ARM processor.

④. Can be connected to urine tangible composition analyzer.

Auto Urine Analyzer UA-240
