1. It can be adapted to the 96- and 48-well Microplates.
2. Regulates rinse position of cleaning head according to user requirements.
3. Chooses to set washing parameters for different effects.
4. External programming/downloading available through RS-232 ports.
5. 8-channel or 12 channels optional

Power Cord, Fuse Tube, Wash Bottle, Waste Bottle, Pass Needle, Silicone Tube, Cleaning head, Manual, Warranty Card.

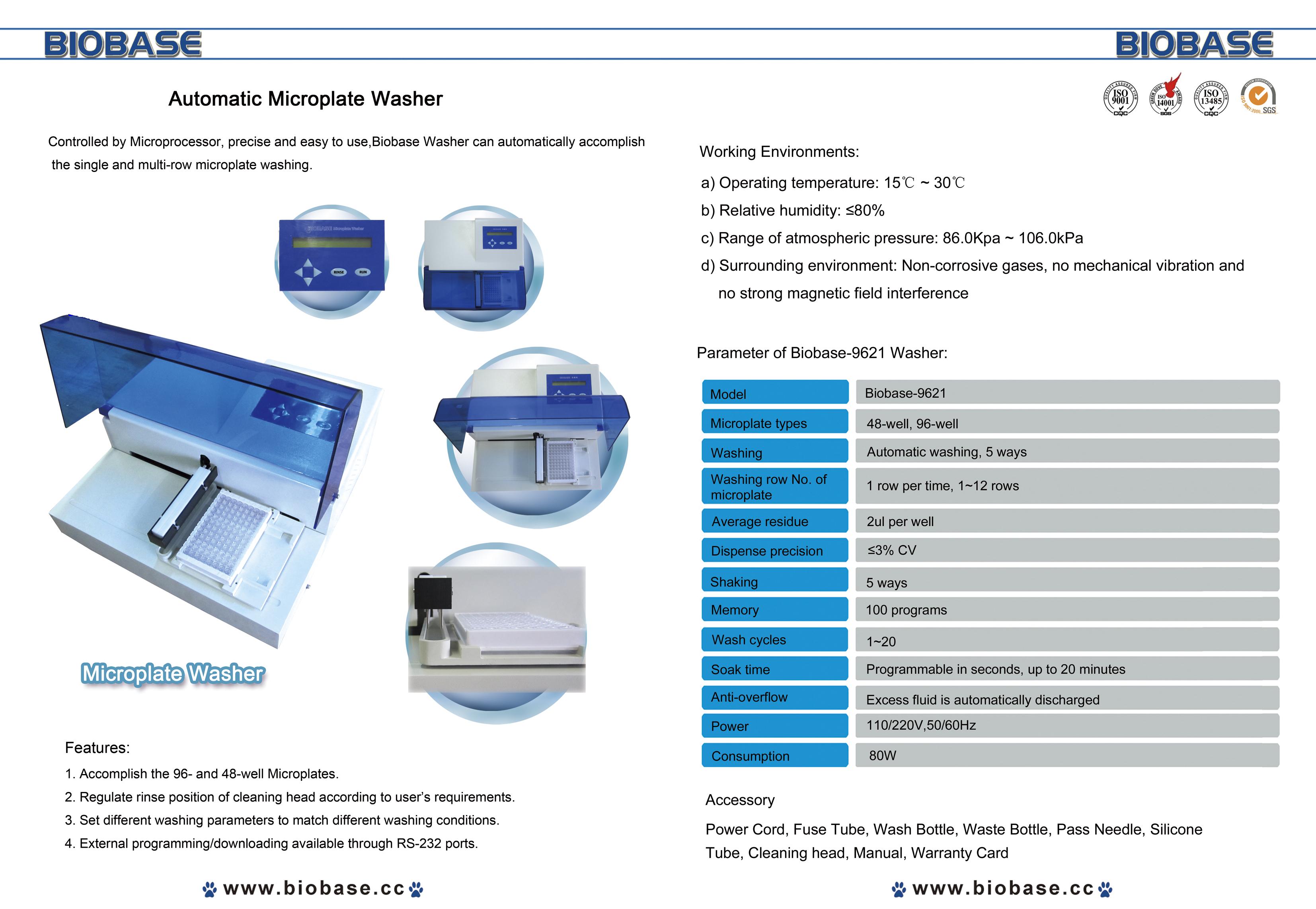

The automatical Microplate washer

Model

Biobase-9621

Microplate Types

48-well, 96-well

Washing

Automatic washing

5 ways

Washing the row number of microplate

1 row per time

1- 12 rows

Average Residue

2ul per well

Dispense Precision

≤3% CV

Shaking

5 wa

Model	Biobase-9621
Microplate Types	48-well, 96-well
Washing	Automatic washing 5 ways
Washing the row number of microplate	1 row per time 1- 12 rows
Average Residue	2ul per well
Dispense Precision	≤3% CV
Shaking	5 ways
Memory	100 programs
Wash Cycles	1-20
Soak Time	Programmable in seconds, up to 20 minutes.
Anti-overflow	Excess fluid is automatically discharged.

Working Environment:

1. Environment:

a) Operating Temperature: 15° C to 30° C;

b) Relative humidity: ≤80%

c) Range of atmospheric pressure: 86.0kPa～106.0kPa

d) Surrounding environment: Non-corrosive gases, no mechanical vibration and no strong magnetic field interference.

2. Electrical: 220+22Volts AC 50+1Hz

3.Power: ≤80W

Memory

100 programs

Wash Cycles

1-20

Soak Time

Programmable in seconds, up to 20 minutes.

Anti-overflow

Excess fluid is automatically discharged.
